Improve Your Drying Process with Our Advanced Tilting Centrifugal Dryers
Do you need to dry metal and plastic parts efficiently?
Are other machines too bulky and inconvenient to operate?
Your current drying system may be costing you time, money and quality
Introducing PDJ Vibro’s Tilting Centrifugal Dryers
We have 2 models of tilting centrifugal dryers with each model offering unique specifications so we can find the best one to suit you
We also have traditional non-tilting basket machines
Benefits
- Space saving: no longer need cranes to load and unload
- Cost saving: reduced labour and energy costs
- Comprehensive drying: thanks to dual action mechanism
- Consistent quality
- Enhanced efficiency: rapid drying times reduce cycle duration and increase output
- User-friendly operation: tilting mechanism makes operation easier and safe
Features

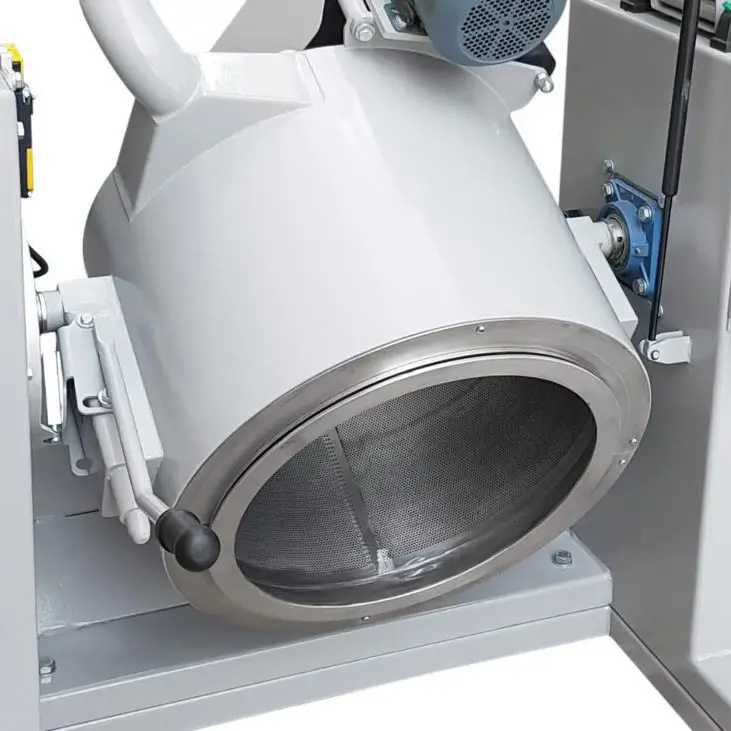

- Tiltable mechanism
- Process control timer
- Optional automatic operation and temperature control
- Additions: Electro lock and light barrier
- Choice of work bowl hole diameters
- Air circulation via suction (rather than fan)
What's next?
So you’ve identified a need for efficient drying of parts - where should you go from here?
1
Contact us by phone or online form so that you can discuss your specific needs
2
We will help to find the right thing for you - our experts will design and customise the dryer to fit your application
3
Our team will send the dryer and provide advice so you are set up and running.
Your drying problems are resolved!
SPECIFICATIONS

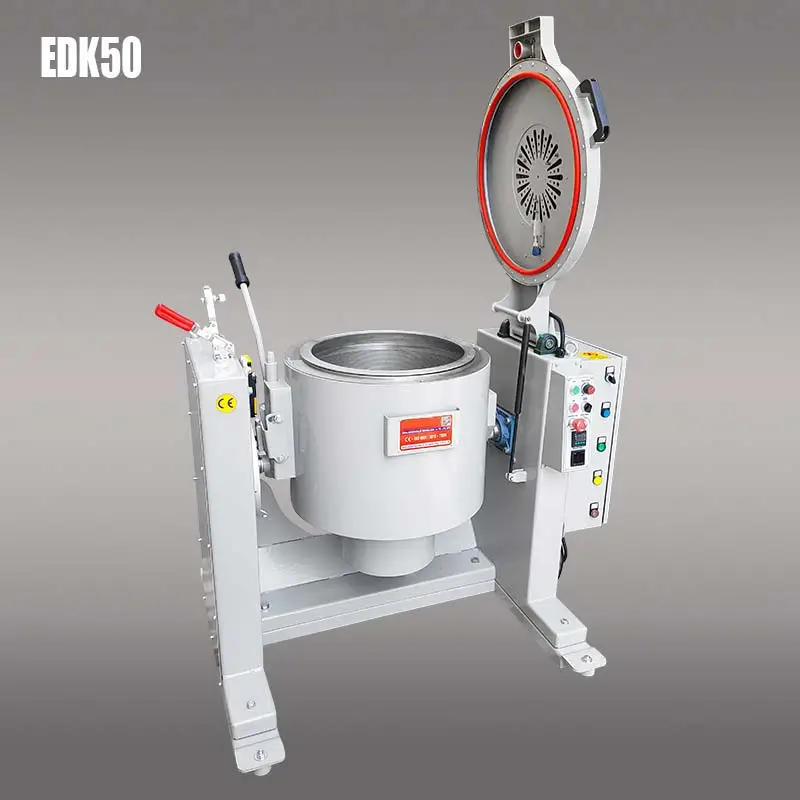

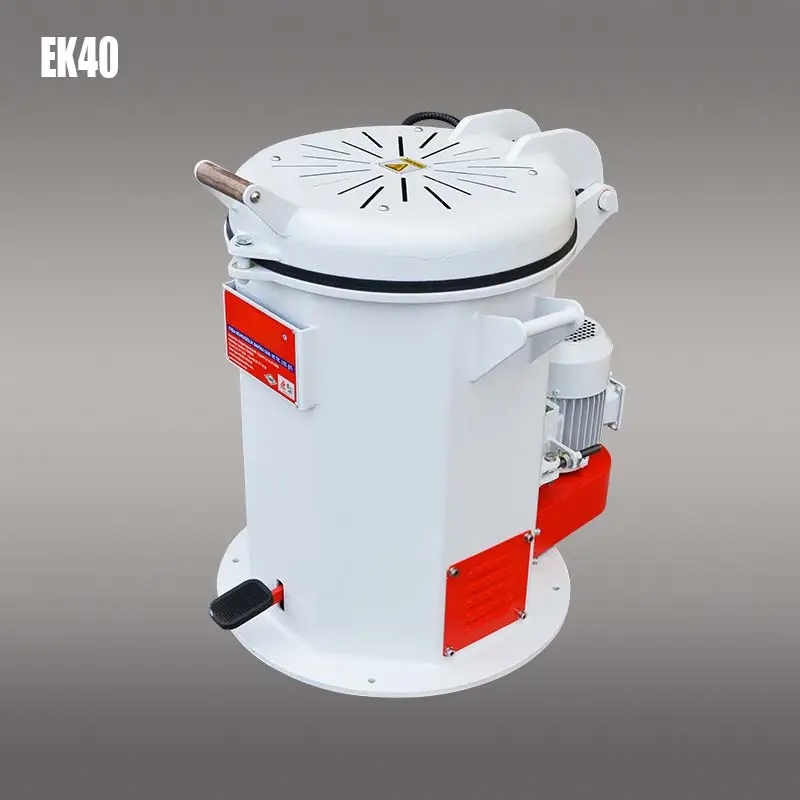

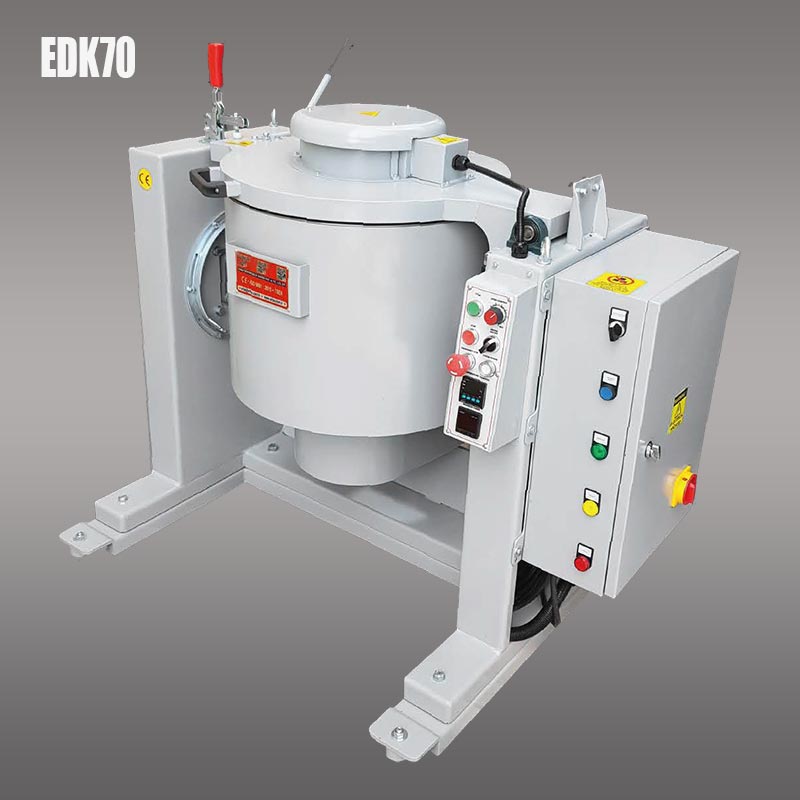

| Type | EDK50 | EDK70 | EK 40 |
|---|---|---|---|
| Tiltable | Basket | ||
| Internal Basket Dimensions Ø x h ( mm ) | 460x320 | 510x320 | 373 x 270 |
| Gross Volume ( Lt.) | 50 | 70 | 30 |
| Capacity ( kg ) | 50 | 70 | 30 |
| Rpm ( d/dak ) | 550 | 550 | 500 |
| Heating Power ( kW ) | 4.5 | 4.5 | 2.5 |
| Motor Power ( kW ) | 1.1 | 1.1 | 0.75 |
| Total Installed Power (kW ) | 5.6 | 6 | 3.25 |
| Power supply | 400v 50Hz | 400v 50Hz | |
| Basket Material | AISI 304 | AISI 304 | |
| Overall Dimensions l x w x h ( mm ) | 1200x850x1250 | 1250x1050x1280 | 875 x 650 x 1400 |
| Basket Entry Dia. (mm) | Ø 405 | Ø 420 | |
| Basket Hole Dia. (mm) | Ø 3 | Ø 3 | |
| Weight ( kg ) | 360 | 410 | 160 |
