Discover our top-of-the-line barrel finishing machines, expertly engineered to provide superior surface finishing solutions for a wide range of components, including very small, thin and sensitive parts, as well as moving and larger parts like chains. These machines offer cost-effective surface finishing capabilities even for extended process times, ensuring consistent results and exceptional performance. Experience the difference in quality and efficiency with our advanced barrel finishing machines.
Features include;
- Surface finishing possibilities for very small, thin and sensitive parts.
- Surface finishing possibilities for moving parts like chains.
- Barrel Deburring, Polishing and de-rusting.
- Economic surface finishing possibilities for very long process times.
- Highly durable hot poured polyurethane coated work container.
- Speed controller.
- Digital process timer.
- Digital disc speed indicator.
- Possibilities for continual, water and chemical supplying and discharging.
Technical Details
| Type | Gross Volume lt. | Power kW | Voltage / Frequency AC-V/Hz 3 phase | Speed rpm | Weight kg |
|---|---|---|---|---|---|
| TAM 110 | 110 | 0.93 | 400 / 50 (*) | 0-45 | 325 |
| TAM 220 | 220 | 1.68 | 400 / 50 (*) | 0-45 | 475 |
| TAM 330 | 330 | 3.25 | 400 / 50 (*) | 0-45 | 695 |
| TAM 440 | 440 | 3.37 | 400 / 50 (*) | 0-45 | 775 |
| TAM 550 | 550 | 5.1 | 400 / 50 (*) | 0-45 | 935 |
| (*) Different voltage and frequency motors are available. | |||||

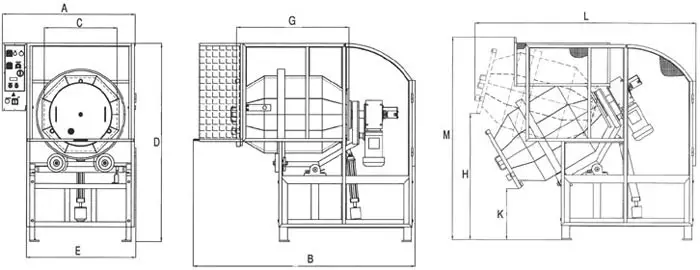

| Type | A mm | B mm | C mm | D mm | E mm | G mm | H mm | K mm | L mm | M mm |
|---|---|---|---|---|---|---|---|---|---|---|
| TAM 110 | 920 | 1350 | 460 | 1095 | 660 | 870 | 1160 | 337 | 1250 | 733 |
| TAM 220 | 1100 | 2200 | 700 | 1670 | 900 | 1200 | 1920 | 440 | 2015 | 1175 |
| TAM 330 | 1217 | 1935 | 724 | 1640 | 1023 | 1152 | 1590 | 641 | 1730 | 924 |
| TAM 440 | 1150 | 2350 | 740 | 1690 | 950 | 1256 | 1920 | 520 | 2155 | 1130 |
| TAM 550 | 1352 | 2155 | 828 | 1930 | 1158 | 1382 | 1885 | 462 | 2142 | 1120 |
Barrel Finishing Equipment Guide
PDJ Vibro Barrel Finishing machines are designed to process small robust components where an aggressive process is required.
The finishing media and chemical additive combinations provide a wide spectrum of finishes from simple deburring, edge breaking, radiusing. The sliding / tumbling action along with the potential process chamber sizes makes this machine ideal for a selection of applications.
