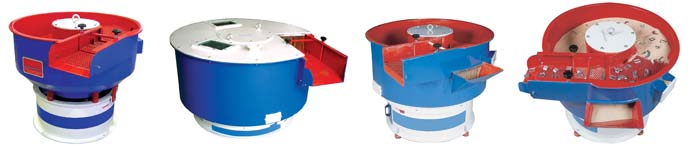

Maize dryers

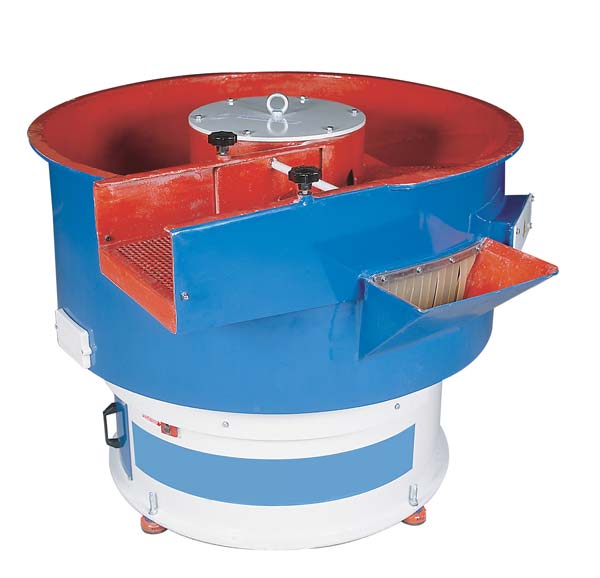

Maize dryer

Maize dryer

  • The work pieces are easily separated from the granules with integrated ramp
  • Excellent drying abilities
  • Excellent heating system
  • Modular operation in conjunction with other machinery
  • Vibration proof heating elements and isolations
  • Optional spray PU coated work bowl

Technical Details

EVK technical details

TypePower
kW		Heating Element
W		Maize Granule Cap.
kg		Voltage/Frequency
AC-V/Hz
3 phase		Gross Volume
lt.		Weight
kg
EVK 100 1.1 1500 30 400 / 50 (*) 100 335
EVK 200 1.5 1800 60 400 / 50 (*) 200 420
EVK 350 3 2400 100 400 / 50 (*) 350 610
EVK 500 4 3600 150 400 / 50 (*) 500 1030
EVK 800 5.5 5400 200 400 / 50 (*) 800 1200

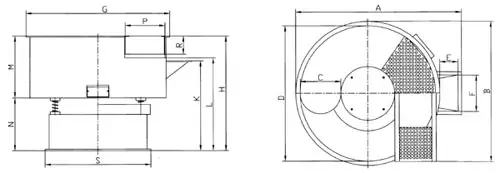

TypeA
mm		B
mm		C
mm		D
mm		E
mm		F
mm		G
mm		H
mm		K
mm		 L
mm		 M
mm		N
mm		P
mm		R
mm		S
mm
EVK 100 1090 755 250 856 180 300 935 860 690 700 400 460 255 125 755
EVK 200 1290 907 312 1040 200 350 1100 940 730 760 460 440 305 140 1100
EVK 350 1520 1070 380 1240 220 400 1320 1045 820 835 535 480 370 160 1320
EVK 500 1690 1230 426 1435 240 500 1520 1140 880 890 640 480 425 200 1520
EVK 800 1960 1370 485 1640 260 600 1740 1190 890 915 675 480 480 230 1740
