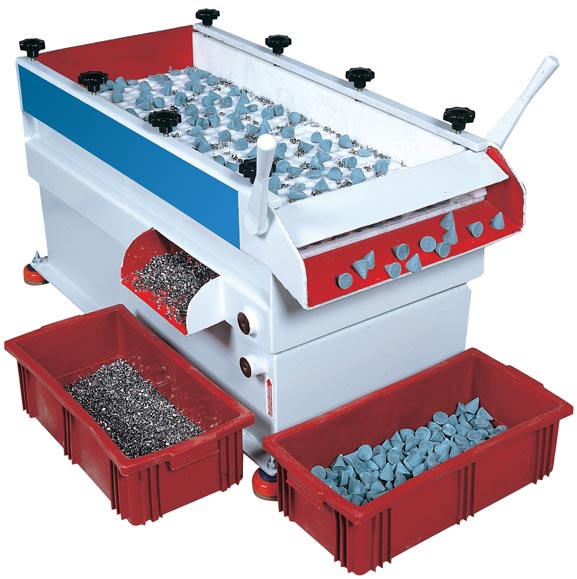

Floor separation unit

Floor seperation units

Technical details

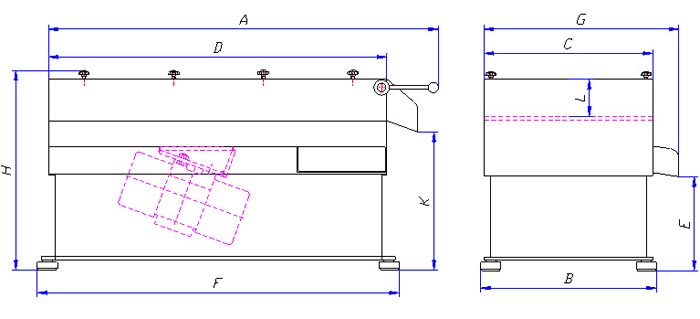

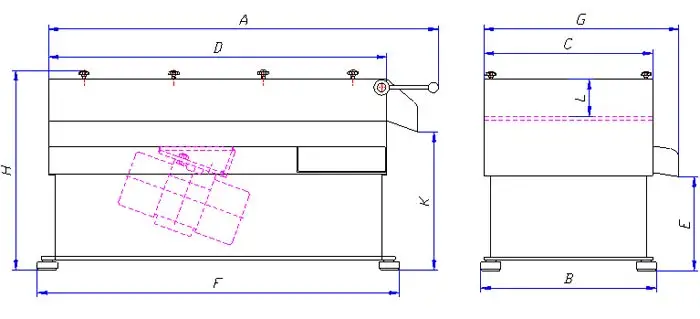

Floor separation unit technical diagram

TypeCapacity
lt.		Power
kW		Voltage / FrequencyAC-V/Hz
3 phase		Weight
kg
YE 60 8 0.25 400 / 50 (*) 140
YE 200 20 2 x 0.25 400 / 50 (*) 210
TypeA mmB mmC mmD mmE mmF mmG mmH mmK mmL mm
YE 60 1185 520 500 1000 280 1070 580 590 410 110
YE 200 1550 535 600 1400 200 1400 680 600 320 140
